Solvent Parts Washers
Powerful and precise. HTE Control solvent parts washers deliver consistent results, even with high contamination levels and high production volumes.
HTE Control solvent parts washers are engineered for performance in demanding industrial environments. Using modified alcohol in a fully enclosed vacuum chamber, these systems remove oils, greases, emulsions, and particulates from complex parts — all while maintaining low operating costs and high throughput. Whether you’re cleaning small precision components or handling large, heavily contaminated loads, there’s a solvent-based HTE Control system designed to match your process and production goals.
KP.30
Load Size: 7.8" x 11.8" x 5.9"
Max Load Weight: 66 lbs
Dimensions: 51.2" x 78.7" x 78.7"
Cycles per Hour: 4-6

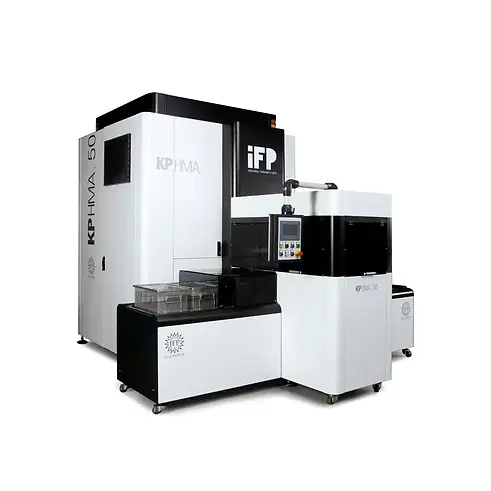

KP.HMA 50
Load Size: 11.8" x 17.7" x 7.8"
Max Load Weight: 110 lbs
Dimensions: 80.7" x 78.7" x 118.1"
Cycles per Hour: 4-8
KP.HMA 100
Load Size: 23.6" x 17.7" x 7.8"
Max Load Weight: 220 lbs
Dimensions: 114.2" x 74.8" x 118.1"
Cycles per Hour: 4-8
KP.HMA 150
Load Size: 35.4" x 17.7" x 7.8"
Max Load Weight: 330 lbs
Dimensions: 128.0" x 90.6" x 126.0"
Cycles per Hour: 4-8
KP.HMA 200
Load Size: 47.2" x 17.7" x 7.8"
Max Load Weight: 440 lbs
Dimensions: 128.0" x 90.6" x 126.0"
Cycles per Hour: 4-8
KP.MAX 400
Load Size: 47.2" x 17.7" x 15.7"
Max Load Weight: 881 lbs
Dimensions: 149.6" x 106.3" x 135.8"
Cycles per Hour: 3-4

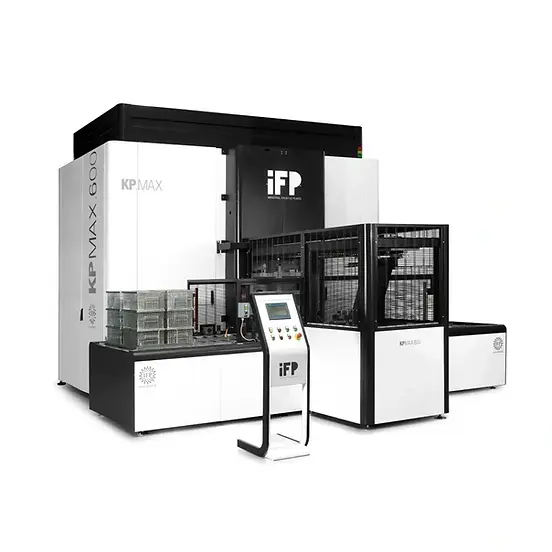

KP.MAX 600
Load Size: 39.3" x 23.6" x 23.6"
Max Load Weight: 1,322 lbs
Dimensions: 159.4" x 106.3" x 145.7"
Cycles per Hour: 3-4

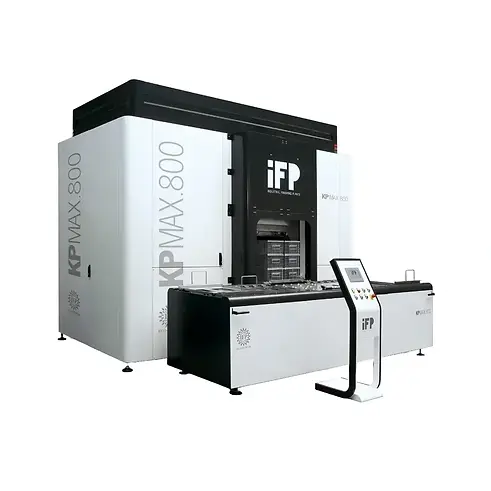

KP.MAX 800
Load Size: 47.2" x 31.4" x 31.4"
Max Load Weight: 1,763 lbs
Dimensions: 177.2" x 106.3" x 147.6"
Cycles per Hour: 3-4
